Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable

Name: Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable
Brand: Jiqian
Price: 180 USD

Quality Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable for sale

Brand Name : Jiqian

Model Number : GYTZA

Certification : CE/ISO9001

Place of Origin : Guangdong,China

MOQ : 1KM

Price : 180-350USD/KM

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 60000KM/month

Delivery Time : 3-5 days, it depends on your quantity

Packaging Details : wooden drum

Fiber count : 2-288Core

Strength member : ALUMINUM TAPE

Warranty : 25 years

MOQ : 1KM

OEM : Yes

Amoured : Yes

Length : 1/2/3/4/5KM

Contact Now

Product Description
Outdoor flame retardant optical fiber cableLZSH outer sheath
Application1. aerial,overhead installation


Cable Specification:
 Item Name:Outdoor flame retardant optical fiber cable
 Optical Mode:Singlemode/Multimode
 Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
 Total Fiber Count:2-288
 Bend Radius(Static/Dynamic):10D/20D
 Working Life:More than 25 years
 Application:Aerial or duct,Local network,Local network,Long distance network communication.
 characteristic:
1. High quality fiber,low loss,stable network environment,faster and stable transmission
2. Flame retardant sheath to prevent burning
3. Special ointments to protect fibers
4. Armouring sheath is compressive and tensile

Specification
  	 			Product Name
 			Factory price outdoor G652D GYTZA single mode 4c 12c 36c 72c 96c Flame Retardant optical fiber cable

 			Fiber Count
 			2-288 Fibers,can be customized according to customers' requirement

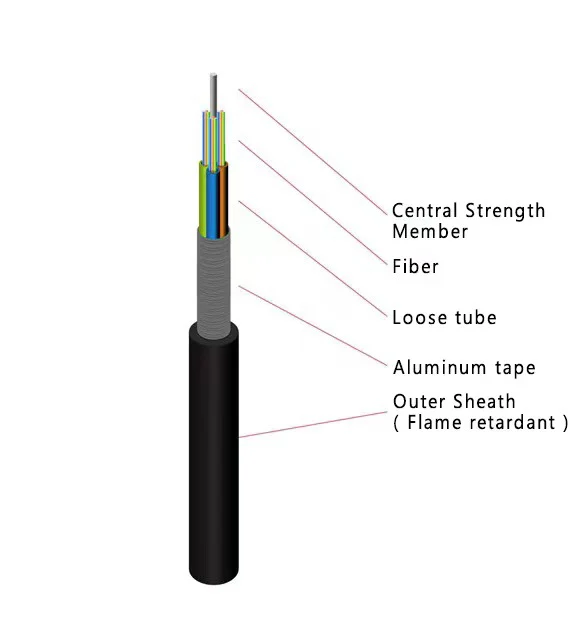

 			Construction
 			Center beam tube type

 			Fiber Type
 			Singlemode G.652D / G.657A1

 			Outer Jacket Material
 			high quality flame resistant material

 			Application
 			overhead,aerial

 			Diameter
 			depends on quantity of fiber and structure

 			Cable Length
 			1km,2km,3km,5km per drum,can be customized

 			Test Wavelength
 			1310/1550nm

 			Operation Temperature
 			-40℃ to +70℃

 			Strengthen
 			aramid yarn or glass yarn

 			Color
 			usually black,can be customized


Fiber Parameter
  	 			Item
 			Unit
 			Specification

 			Fiber Type
 			G. 652

 			Mode field diameter
 			1310nm
 			μm
 			9.2 ± 0.4

 			1550nm
 			μm
 			10.4 ± 0.8

 			Cladding diameter
 			μm
 			125.0 ± 1

 			Cladding non-circularity
 			%
 			≤1.0

 			Core/cladding concentricity error
 			μm
 			≤0.5

 			Coating diameter
 			μm
 			242 ± 7

 			Coating/cladding concentricity error
 			μm
 			≤12

 			Cable cut-off wavelength
 			nm
 			≤12

 			Attenuation Coefficient
 			1310nm
 			dB/km
 			≤0.36

 			1550nm
 			dB/km
 			≤0.22

 			Proof stress level
 			kpsi
 			≥100


Related Products
Packing & Delivery
Packaing detail:
 1km/ 2km/3km/4km 5km per plywooden drum

 Shipping:
 By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
