MGTSV Mining Fiber Optic Cable 24 Core G652D Single Mode Steel Wire Armored Outdoor Duct Coal Mine

  • 1
  • 2
  • 3

Brand Name : JQ/OEM/Customize

Model Number : MGTSV

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : GuangZhou China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4500KM Per Month

Delivery Time : 3-5dyas

Packaging Details : 1/2/3/4/5 km in one wooden drum

Jacket material : Flame-Retardant LSZH

Fiber count : 4-288cores

Structure : Stranded Loose tube

Product name : Outdoor Optic Fiber Cable

Fiber type : YOFC or Fiberhome fujikura as request

Application : Aerial, Duct, Overhead Installation

Color : Blue/Yellow

Module : MGTSV-24B1

Contact Now

MGTSV Mining Armored Fiber Optic Cable Flame Retardant Underground Communication Cable

Features:

  • High-strength loose tube with gel filling protects fibers from moisture and mechanical stress.
  • Steel wire central strength member and PSP armor provide excellent crush resistance and durability.
  • Full water-blocking design ensures reliable performance in humid underground environments.
  • Flame-retardant PVC sheath enhances safety for mining and industrial applications.

Applications:

  • Underground mining communication networks
  • Mine tunnels and shaft monitoring systems
  • Harsh industrial and underground installations
  • Safety monitoring and data transmission in mining areas

Item Name
MGTSV Fiber Optic Cable
Place of Origin
Guangdong,China
Model Number
MGTSV
Brand Name

JQ/ Jiqian/ Customize
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/ FRP
Material of Jacket
Flame-retardant Sheath
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial

MGTSV Mining Fiber Optic Cable 24 Core G652D Single Mode Steel Wire Armored Outdoor Duct Coal Mine

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical data

Cable Type

Fiber

Count

Tubes

+Fills

Cable

Diameter

mm

Cable

Weight

Kg/km

Tensile

Strength

Long/Short

Term N

Crush

Resistance

Long

/Short Term

N/100m

Bending

Radius Static

/Dynamic mm

MGTSV-2~6

 2~60 5 12.2 156 1000/2000 500/1500 15D/30D
MGTSV-62~72 62~72 6 13.8 210 1750/3500 500/1500 15D/30D
MGTSV-74~96 74~96 8 15.1 242 1750/3500 500/1500 15D/30D
MGTSV-98~120 98~120 10 17.2 280 1750/3500 500/1500 15D/30D
MGTSV-122~144 122~144 12 19 320 1750/3500 500/1500 15D/30D
MGTSV-146~216 146~216 18 19 320 1750/3500 500/1500 15D/30D

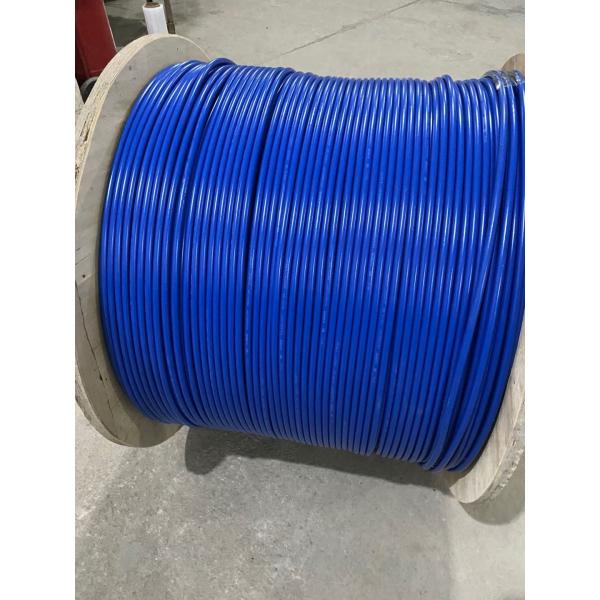

Product Image

MGTSV Mining Fiber Optic Cable 24 Core G652D Single Mode Steel Wire Armored Outdoor Duct Coal Mine

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

MGTSV Mining Fiber Optic Cable 24 Core G652D Single Mode Steel Wire Armored Outdoor Duct Coal Mine

MGTSV Mining Fiber Optic Cable 24 Core G652D Single Mode Steel Wire Armored Outdoor Duct Coal Mine

FAQ – MGTSV Mining Fiber Optic Cable

Q1: What is MGTSV fiber optic cable used for?
A: It is mainly used for underground mining communication and monitoring systems.

Q2: Is MGTSV cable flame retardant?
A: Yes, it uses a flame-retardant PVC sheath designed for safe mining environments.

Q3: Does the cable have strong mechanical protection?
A: Yes, the PSP armored layer and steel strength member provide excellent crush and impact resistance.

Q4: Is the cable waterproof?
A: Yes, the cable features gel-filled loose tubes and full water-blocking structure.

Q5: Can the fiber count be customized?
A: Yes, different fiber core counts can be customized according to project requirements.
